Custom Action for IB Timeline LWC
To create a custom action for IB Timeline LWC:
1. Go to > > . The Custom Action page is displayed.
2. Select an object from the Manage Custom Actions for drop-down list.
3. In the User-defined Custom Actions, click New.
4. Select Action Type as UI Component. The Custom Action details page for the selected object is displayed.
5. Enter the details as described in the following table:
|
Field
|
Description
|
||
|---|---|---|---|
|
Object
|
Displays the name of the object for which you are creating a custom action.
|
||
|
Action Title
|
Enter the title to appear on the record page. For example, Issue Report/Feedback.
|
||
|
Action ID
|
Enter a unique ID for the custom action.
|
||
|
Description
|
Enter a description for the custom action.
|
||
|
Component Type
|
Select Managed Components from the list.
|
||
|
Name
|
Select Timeline from the list.
|
||
|
Modal Height
|
Select a height from the list. This refers to height of the component when displayed at runtime.
|
6. Click Add to define the list of parameters for this custom action.
|
Parameter
|
Acceptable Values
|
Example
|
|---|---|---|
|
ibField
|
Installed Product lookup Field. (API Name of IB Field on the record)
|
Id or SVMXC__Parent__c or SVMXC__Top_Level__c for Installed Product object.
|
|
earliestRange
|
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
|
3
|
|
label
|
Any string value
|
Timeline
|
|
latestRange
|
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
|
2
|
|
objectApiName
|
The API name of the underlying object on which the timeline is launched
|
SVMXC__Installed_Product__c
|
|
preferredHeight
|
Small, Medium, Large
|
Medium
|
|
recordId
|
Select Field Name and then select Id. The Id of the record on which the step is configured.
|
|
|
daysToShow
|
Number of days to be displayed on graph
|
60
|

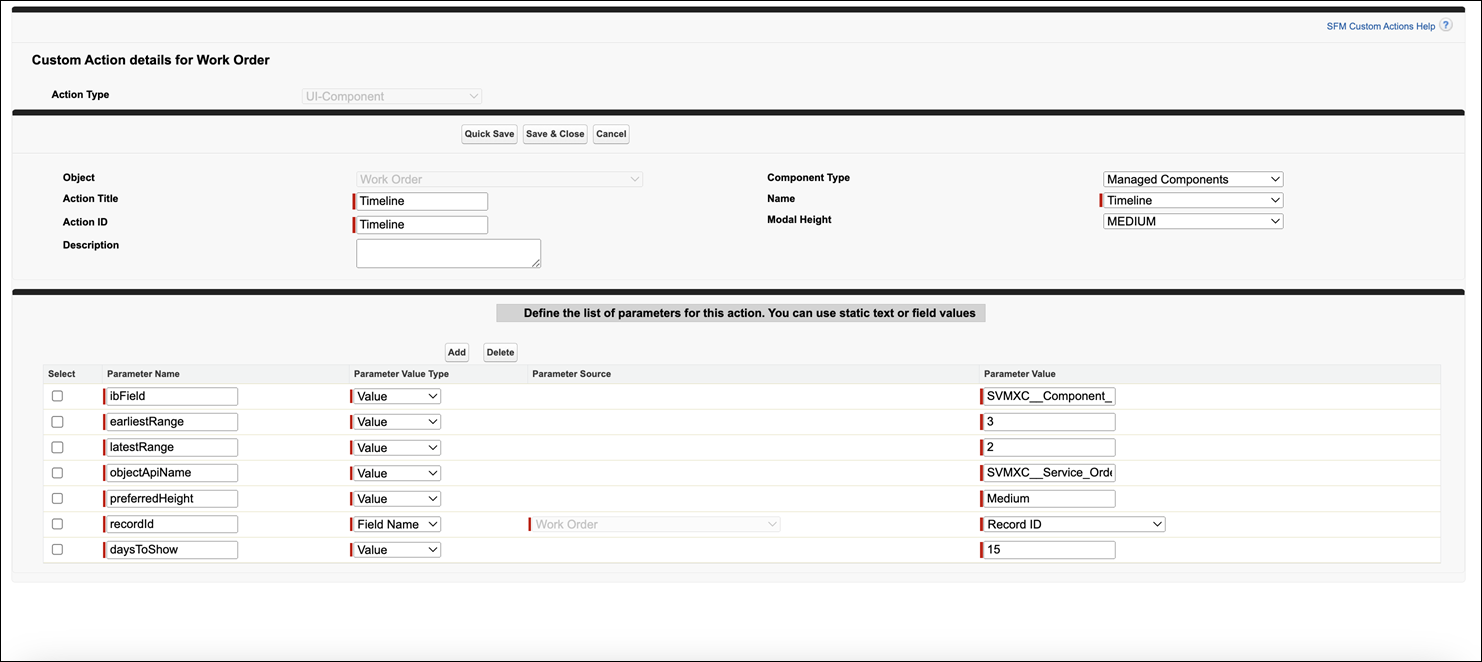

The following screenshot displays a sample IB Timeline custom action configuration on the Work Order object.
7. Click Save.
