Copy Geometry from Another Composite Feature
Creo Parametric 12.4.0.0
User Interface Location: In the Composite Design environment, do the following:
1. In the Composite Design environment, select Model tab.
2. Click
Copy Geometry. The Copy Geometry tab opens.
Copy Geometry. The Copy Geometry tab opens.3. Under Reference Type, click
External.
External.
Description
In the Composite Design environment, you can now use the copy geometry feature to copy data, such as surfaces, bodies, chains, and references, from a different composite feature. For copying the data, you can select a composite feature from the same part or from a different part.

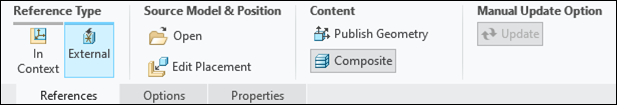

When you use the external copy geometry option inside a Composite Design environment, you can use the Composite button under Content to select a different composite feature to copy from.
Benefits
This enhancement enables sharing of information between two composite features using the copy geometry functionality.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
