Fatigue Analysis in Creo Ansys Simulation
Creo Parametric 13.4.0.0
User Interface Location: To define a fatigue behavior click the arrow next to Define Results and then select
Fatigue Behavior.
Fatigue Behavior.Videos
Description
Creo Ansys Simulation now supports fatigue analysis results within a structural study. A new group of the following fatigue related results are available:
• Fatigue Damage
• Fatigue Life
• Safety Factor
• Biaxiality Indication
• Equivalent Alternating Stress
Probe results are not applicable to fatigue. Fatigue is only available with a Creo Ansys Simulation advanced license. Multiple mean stress theories are available. Fatigue results are calculated based on the following two inputs:
• Fatigue Behavior (stress or strain life)

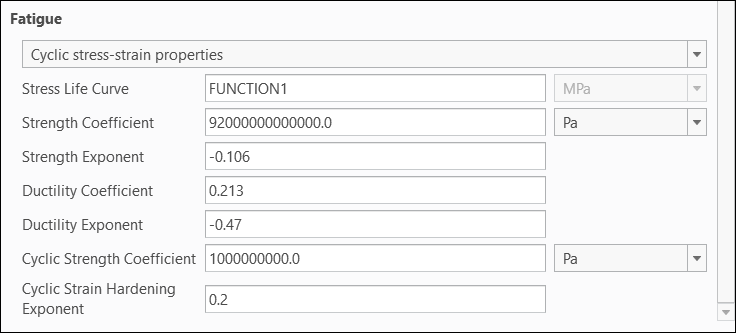

• Fatigue material properties including S-N curve input and other cyclic stress-strain properties that are defined in the Fatigue area of the Material Definition dialog box.
The following figures show two different fatigue results.

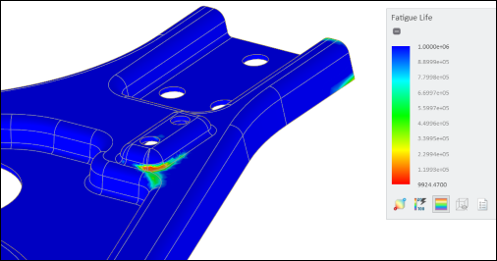

Fatigue Life Results

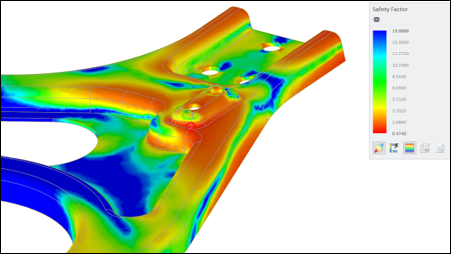

Safety Factor Results
Benefits
This enhancement provides the following benefits:
• Powerful integrated fatigue results
• Fast and easy to use
• Failure prediction under cyclic loading to avoid unexpected failures
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
