Broadband Source Model Simulation Exercise 2— Creating Boundary Conditions
1. Under Domains, right-click PROPELLER_Body_1 and select Add Boundary Condition. The Surface Sets dialog box opens.
2. Select propeller_side1 as shown in the following figure.

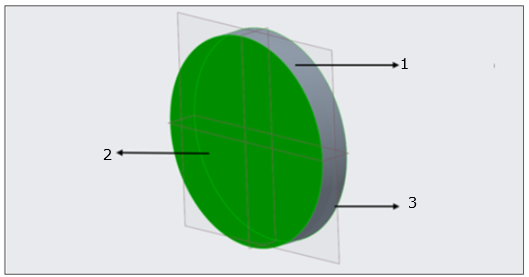

Figure 11. Boundaries surfaces
Boundaries surfaces
1. propeller_top
2. propeller_side1
3. propeller_side2
3. Click OK. Under General Boundaries, a new entity BC_00001 is created.
4. Under Domains, right-click PROPELLER_Body_1 and select Add Boundary Condition. The Surface Sets dialog box opens.
5. Select propeller_side2 as shown in the above figure.
6. Click OK. Under General Boundaries, a new entity BC_00002 is created.
7. Under Domains, right-click PROPELLER_Body_1 and select Add Boundary Condition. The Surface Sets dialog box opens.
8. Select propeller_top as shown in the above figure.
9. Click OK. Under General Boundaries, a new entity BC_00003 is created.
10. Right-click and rename the following boundary conditions:
◦ BC_00001 as propeller_side1
◦ BC_00002 as propeller_side2
◦ BC_00003 as propeller_top
