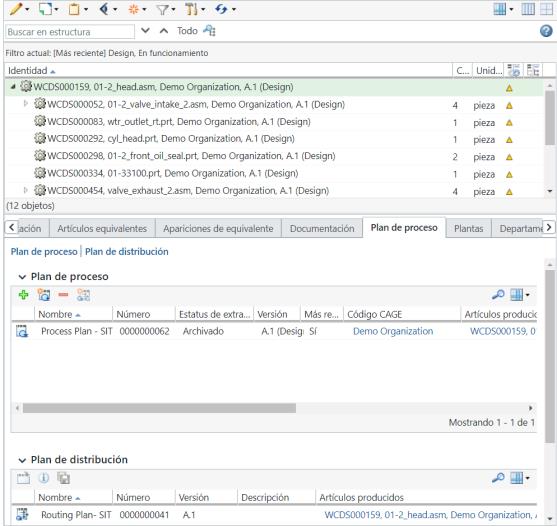

![]() | You can customize the Process Plan and Routing Plan table view to display custom attributes in these tables. |
Action | Description |
---|---|
![]() | Inserts an existing process plan. Click ![]() |
![]() | Inserts a new existing process plan. Click ![]() |
![]() | Removes a process plan. Select one or more process plans and click ![]() |
![]() | Inserts a new routing plan. For more information, see Inserting A New Routing Plan. |
Attribute | Description | ||
---|---|---|---|
Name | Displays the name of the process plan. | ||
Number | Displays the number of the process plan. | ||
Check Out Status | Indicates whether the process plan is checked in or checked out. | ||
Version | Displays the version of the process plan. | ||
CAGE Code | Displays the globally unique organization identifier associated with the part. Depending on preference settings on your site, this field may not appear. This attribute is labeled CAGE Code when Windchill Aerospace & Defense module is installed.
For more information, see Owning Organization Participants. | ||
Produced Parts | If the process plan is associated with a co-produce object, you can view the primary part information in the Produced Parts column. In this column, the primary and secondary part information appears as a link. If you click the link, the part information page opens. | ||
Related Object | Displays the information about the object for which the process plan is created. |
Action | Description |
---|---|
![]() | Opens a routing plan in the Process Plan Browser (PPB). The system opens the process plan in the context of a routing plan. For more information, see Opening a Routing Plan in the Process Plan Browser. |
![]() | Opens the information page of a routing plan. For more information, see Routing Plan Information Page. |
![]() | Creates a copy of an existing routing plan. For more information, see Using the Save As Action for a Routing Plan. |
![]() | In the Routing Plan table when you select a routing plan and right-click, the ![]() ![]() |
Attribute | Description |
---|---|
Name | Displays the name of the routing plan. |
Number | Displays the number of the routing plan. |
Version | Displays the version of the routing plan. |
Description | Displays the information about the routing plan. |
Produced Parts | Displays information about the part associated with the routing plan. |
Plant | Displays the information about the plant associated with the routing plan. |
Process Plan | Displays the information about the process plan associated with the routing plan. |
