Welding: Stacking
Creo Parametric 12.4.0.0
User Interface Location: Click >
Welding >
Spot Weld.
Welding > Spot Weld.Videos
Description
Creo Welding has been enhanced to calculate stacking for each spot weld instance.

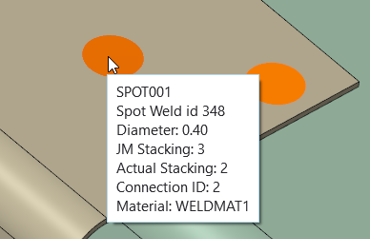

You can view the stacking calculation when you hover over a spot weld instance in the graphics window:

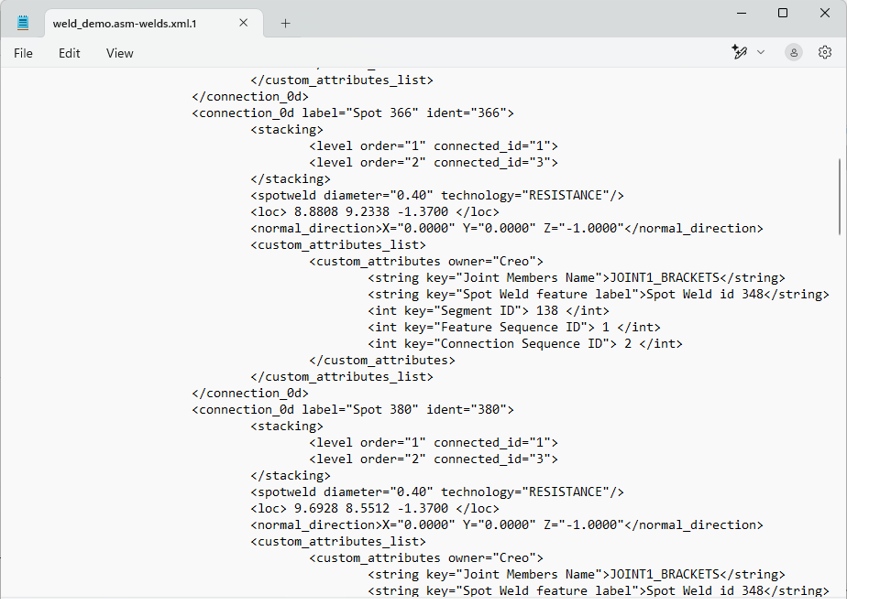

Stacking information is provided for the xMCF format, and it can be exported:
Stacking calculation is used to validate the spot welds.
The following stacking information is provided:
• Label
• Parent feature
• Diameter
• Joint Members stacking
• Calculated stacking
• Sequence ID
• Material
Stacking calculation was not available in previous releases.
Benefits
• Full support for xMCF standards when exporting spot weld information
• Provides validation information for spot welds
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
