Welding: Offline Programming for Groove/Butt Welds
Creo Parametric 12.4.0.0
User Interface Location: Click Applications > Welding > Info > Export.
Videos
See the video on the Learning Connector.
Description
In Creo 12, the ability to export groove/butt weld information for the offline programming (OLP) of robotic welding has been added. The information is exported as an XML file. All groove/butt welds and options are supported. Weld features created in previous releases need to be up to date (regenerated) to be able to take advantage of export for OLP.
Previously, only fillet weld export was available for OLP.
Benefits
Ability to export the groove/butt weld information as an XML file for downstream usage in offline robotic programming (robotic welding).

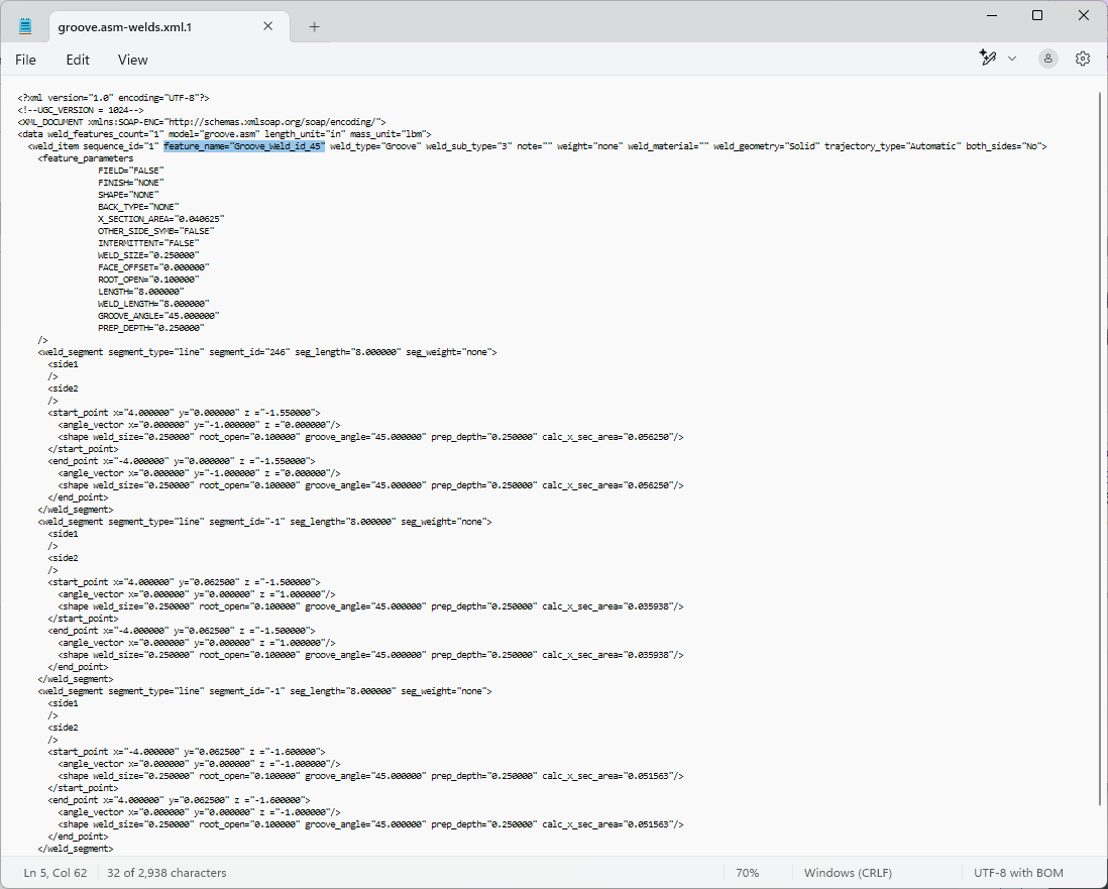

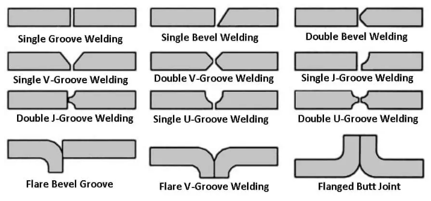

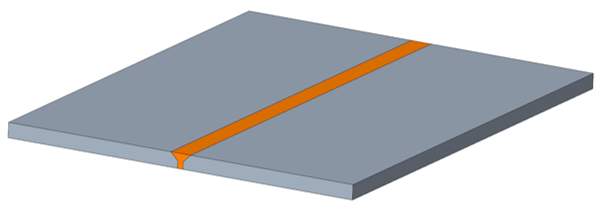

groove weld types groove weld in model XML file exporting groove weld information for offline programming for robotic welding
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
