New HSM Swarf Finish Step
Creo Parametric 13.4.0.0
User Interface Location: In Manufacturing, click Mill > HSM 5 Axis Swarf Finish.
Videos
See the video on the Learning Connector.
Description

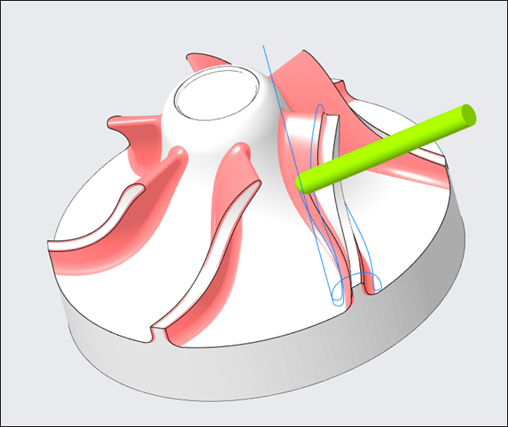

The Swarf Finish toolpath is a new addition to the HSM Advanced extension in this release. This advanced 5-axis milling step uses the side of the tool to machine complex shapes such as impellers or blades.
The toolpath supports complex, multi-axis, and variable-wall-height machining. It also includes robust automatic collision detection and avoidance for both the tool and the holder.
Benefits
This enhancement provides the following benefits:
• Improves machining efficiency when removing a large amount of material
• Delivers better surface quality
• Helps reduce machining cycle time
Additional Information
Tips:
None.
Limitations:
None.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
To Create HSM 5 Axis Swarf Finish Step
