On Entity and Normal to Entity Placement Types Support for Symbols
Creo Parametric 13.4.0.0
User Interface Location: Select a Symbol in MBD and right click.
Description

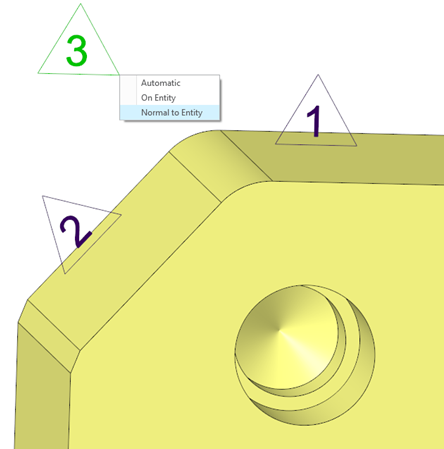

In Model-Based Definition (MBD), you can now place symbols directly on surfaces without leaders. The following placement types are supported for symbols:
• On Entity-Symbol can be placed directly on a surface, and will automatically align with the active annotation plane. You can manually rotate the symbol to adjust its orientation.
• Normal to Entity-Symbol is automatically placed perpendicular (normal) to the selected surface.
Benefits
Enhanced flexibility for symbol placement in Model-Based Definition.
Additional Information
Tips: | To support the On-Entity and Normal to Entity placement options for a symbol, the corresponding placement attributes must be enabled in the symbol's definition. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
