Thermal Optimization Study
Creo Parametric 12.4.0.0
User Interface Location: In the Generative Design application, click > .
Videos
Description

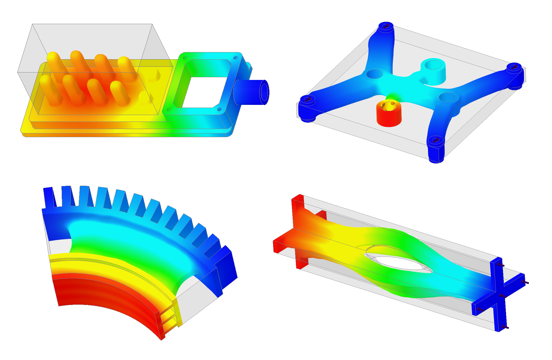

You can now use Thermal Study in Generative Design. This is a steady-state thermal study with conduction and convection boundary conditions, where the convection boundary condition can be suppressed. The new load types include heat flow, heat flux, and heat generation load.
The following new objectives are added for this study:
• Minimize the peak temperature with limit volume
• Minimize mass at the peak temperature

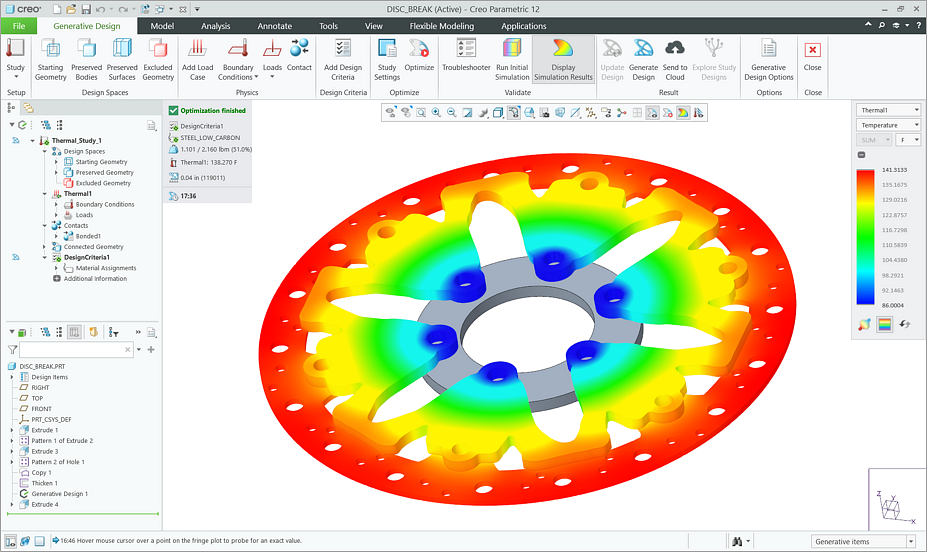

The result probe shows the temperature values.
Benefits
This enhancement expands analytical capabilities of Generative Design by including another type of study, offering powerful optimizations with thermal conditions. You can now solve additional use cases with the new objectives.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
