GD&T Advisor Enhancement: Improved Compliance to Detailing Standards-Constraining Revolved Features with Total Runout
Creo Parametric 13.4.0.0

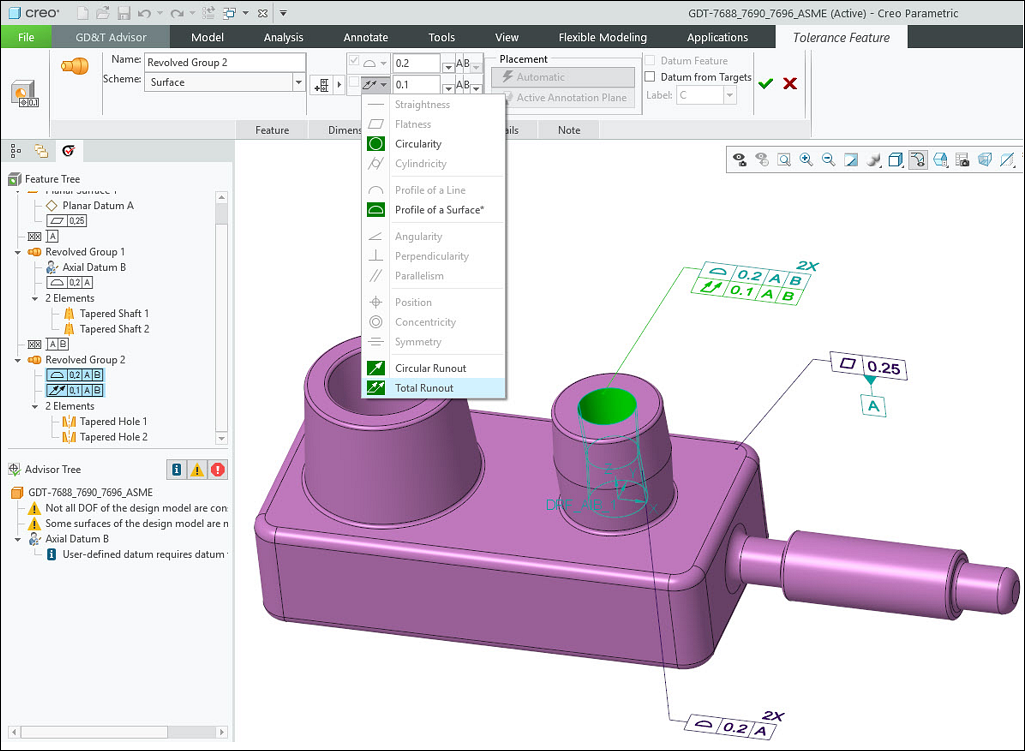

User Interface Location: When defining a tolerance feature,
Total Runout is available in the list of geometrical characteristic symbols and can be used in applicable situations.
Total Runout is available in the list of geometrical characteristic symbols and can be used in applicable situations.Description
You can now apply Total Runout to any revolved feature when the center of the revolved feature is coaxial with the intended axis or datum reference frame (DRF).
Total Runout to any revolved feature when the center of the revolved feature is coaxial with the intended axis or datum reference frame (DRF).
Benefits
This enhancement improves compliance with the American Society of Mechanical Engineers (ASME) standards.
Additional Information
Tips: | None. |
Limitations: | This enhancement is applicable only for ASME models. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
