GD&T Advisor Enhancement: Improved Compliance to Detailing Standards-Constraining Conical Features by Surface Profile Tolerances
Creo Parametric 13.4.0.0
User Interface Location: When defining a tolerance feature, the

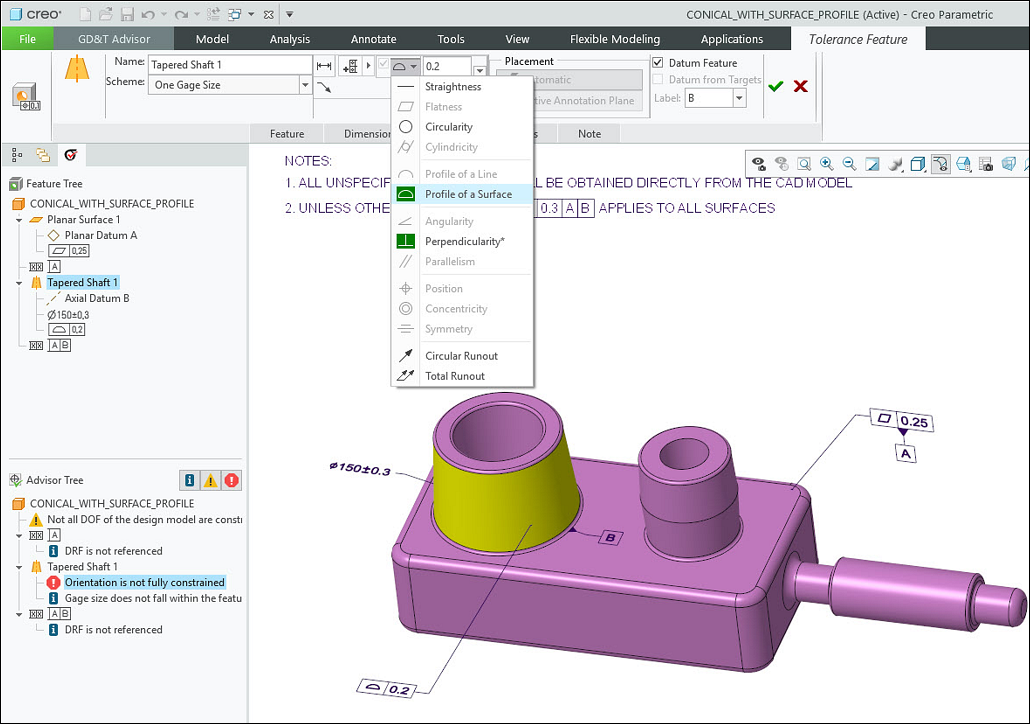

Profile of a Surface is available in the list of geometrical characteristic symbols and can be used in applicable situations.
Profile of a Surface is available in the list of geometrical characteristic symbols and can be used in applicable situations.Description
You can now apply Profile of a Surface to a conical feature and constrain its internal angles and forms. This option is available only when the conical feature uses the One Gage Size scheme.
Profile of a Surface to a conical feature and constrain its internal angles and forms. This option is available only when the conical feature uses the One Gage Size scheme.
This enhancement is applicable for both ASME and ISO models.
Benefits
This enhancement improves compliance with both ASME and ISO detailing standards.
Additional Information
Tips: | None. |
Limitations: | The Profile of a Surface option is available only for conical features that are defined using the One Gage Size scheme. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
