GD&T Advisor Enhancement: Improved Support for Box Selection
Creo Parametric 13.4.0.0
User Interface Location: N/A
Videos
See the video on the Learning Connector.
Description
When creating new functional features with GD&T Advisor, you can now collect individual surfaces using the box selection method. Selected surfaces can be individually managed, allowing for easier selection and removal.

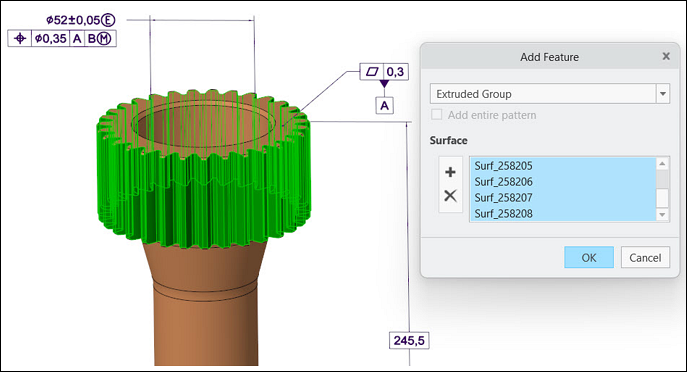

Shows the results of the box selection. Gear-like surfaces on the cylindrical model are highlighted in green. The Add Feature dialog shows a list of the selected surfaces.
Previously, the surfaces selected using the box selection were combined in one collection, and it was not possible to remove individual surfaces from the collection.
Benefits
This enhancement provides better support for surface collection when creating functional features using the GD&T Advisor.
Additional Information
Tips:
None.
Limitations:
The box selection method is supported only for the object-action workflow.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
