GD&T Advisor Enhancement: Advanced Selection Methods Added to Object-Action Workflow for Feature Creation
Creo Parametric 13.4.0.0
User Interface Location: N/A
Videos
Description
Previously, GD&T Advisor did not support advanced selection methods in the object-action workflow, requiring users to manually select multiple surfaces.
GD&T Advisor now supports advanced selection methods in the object-action workflow for creating functional features. Users can apply selection shortcuts such as Seed and Bounds and Loop Surfaces to efficiently select multiple surfaces. GD&T Advisor validates these selections during feature creation, improving usability and reducing manual effort.

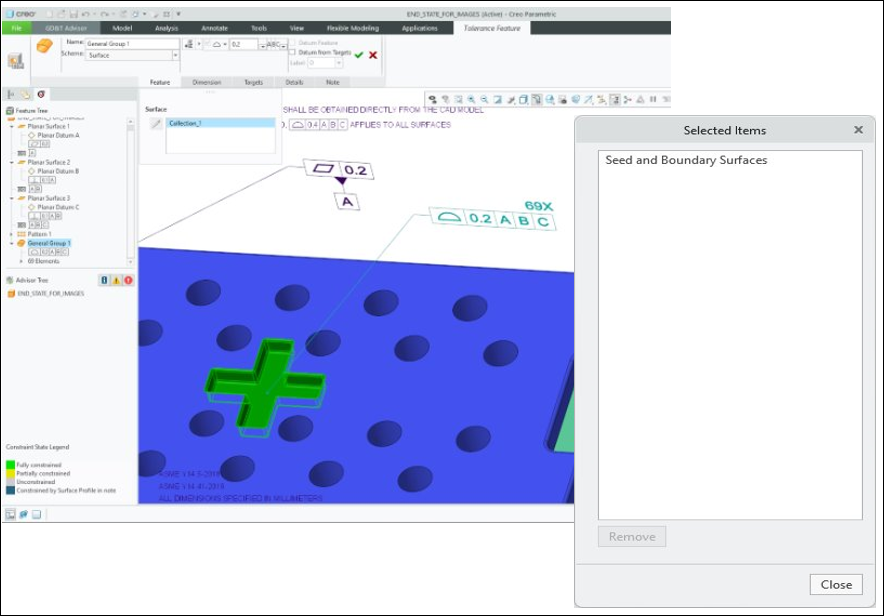

The following image shows how advanced selection methods enhance the object-action workflow in GD&T Advisor for efficient surface selection.
Benefits
With this enhancement, users can efficiently select multiple surfaces in complex models.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
