Broadband Source Model Simulation Exercise 7— Analyzing Results
This exercise describes how the results are analyzed during and after the simulation. To hide CAD surfaces (not the fluid domain), switch between
CAD Bodies and
Flow Analysis Bodies in the Show group. Clear any variable display by selecting No Selection in the Legend drop-down. Click
XYPlot Panel to view the XY Plot.
CAD Bodies and Flow Analysis Bodies in the Show group. Clear any variable display by selecting No Selection in the Legend drop-down. Click XYPlot Panel to view the XY Plot. | 1. To show/hide selected geometric entities, click  Show in View Panel.2. To change the color scheme, click on  More in the Legend and select between Blue Red and Blue Purple. |
Viewing the Pressure Contours on Cross-section
Pressure contours- Sectional view  | Pressure contours- Zoomed view  |
1. In the Flow Analysis Tree, under Results click Derived Surfaces.
2. Select Section 01.
3. In the Properties panel, View tab, for Surface set values for the options as listed below:
◦ Grid—No
◦ Outline—No
◦ Variable—Pressure:[Flow]
◦ Min—0 Pa
◦ Max—500 Pa
Viewing the Acoustic power Contours on Cross-section
Acoustic power contours- Sectional view  | Acoustic power contours- Zoomed view  |
1. In the Post-processing group, click
Section View. A new entity Section 02 appears under Derived Surfaces in the Flow Analysis Tree.
Section View. A new entity Section 02 appears under Derived Surfaces in the Flow Analysis Tree.2. Select Section 02.
3. In the Properties panel, Model tab, set values for the options as listed below:
◦ Type— Plane X
◦ Arbitrary Plane— 0
4. Click OK to close the dialogue box.
5. Section 02 is created under Derived Surfaces in Results in the Flow Analysis Tree.
6. In the Properties panel, View tab for Surface, set values for the options as listed below:
◦ Grid—No
◦ Outline—No
◦ Variable—Acoustic Power:[Acoustic]
◦ Min—0 W/m3
◦ Max—1e-07 W/m3
Viewing the Streamlines in the Domain
Streamlines track the path of fluid flow.
1. To create streamlines, select Stream Lines from the Post-processing group in the Flow Analysis ribbon.
2. To release streamlines from the inlet boundaries, select Yes under Value for outside_dir3_min.
3. Select Geometry under > > > in the Flow Analysis Tree.
4. In the Properties panel, Model tab, set values for the options as listed below:
◦ Line Thickness— 0.0004 m
◦ Animation Time Size— 0.05
5. In the Properties panel, View tab, for Surface, select the following values for the options listed:
◦ Variable—Velocity Magnitude: [Flow]
◦ Min— 0 m/s
◦ Max— 10 m/s
6. In the Properties panel, Model tab for Streamline, set the following:
◦ Release Particle— Yes
◦ Direction— Forward
◦ Number of Particles— 100

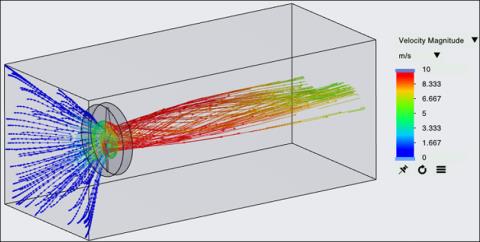

Streamline- Velocity Magnitude
