Draping Simulation with Accurate Core Taper
Creo+
User Interface Location: In the Composite environment, click
Draping Simulation.
Draping Simulation.Description

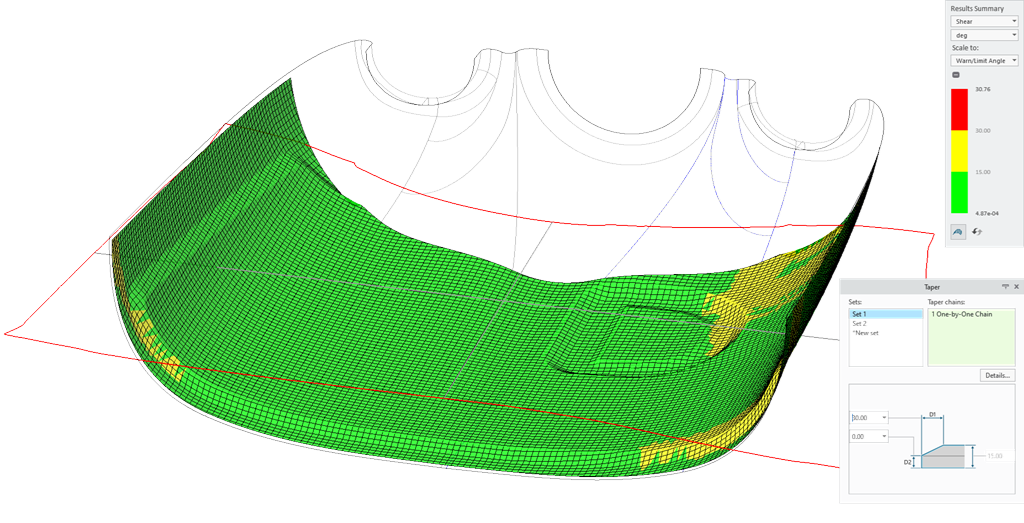

Now, the draping simulation feature is enhanced to understand taper definitions in core ply features, including multiple taper sets on the core boundary. This improvement leads to more accurate draping simulation results, shear results, and flat patterns for plies draping over cores with one or more tapers.
Benefits
This enhancement improves productivity by providing better draping simulation results for plies draping over cores with one or more tapers.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
