Adding a Status Glyph

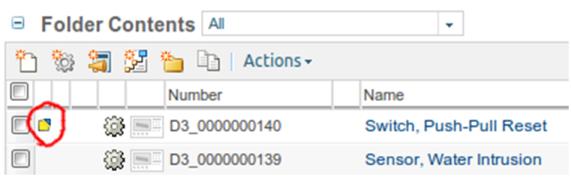

Users want a visual way to quickly see the state of an object. This section describes the different out of the box status glyphs and how to display them for a given object.
Terminology
The following specialized terms are used in this section:
• Component Builder : A Java class used to “build” a UI component, i.e. a UI widget. These builders define properties of your component to tell the infrastructure how to display them.
• Status Family ID : A string used to reference a status glyph.
Solution
Developers can include status glyphs in their tables and information pages directly from a ComponentBuilder class.
Prerequisite Knowledge
To achieve this goal, you need to have an understanding of the following:
• Java Programming
• General understanding of MVC builders
|
Default Icon
|
Glyph Name
|
Status Family ID
|
Known Usages
|
|---|---|---|---|
 |
General
|
statusFamily_General
|
• Locked
• Checked out by you
• Checked out by you in another workspace
• Checked-out by you in this workspace
• New
• Checked out by other
• Checked-out to a project
• Out of date
|
 |
Share
|
statusFamily_Share
|
• Shared to a project
• Shared from PDM
• Checked-out from PDM
|
 |
Message
|
statusFamily_Message
|
• System Excluded Message exists
• Error Messages exists
• Warning Messages exists
• Info message exists
|
|
Task
|
statusFamily_Task
|
• Reassigned
|
|
 |
Change
|
statusFamily_Change
|
• Pending Change
• Hanging Change
• New Hanging Change
|
|
AML/AVL
|
statusFamily_AML_AVL
|
• No AML
• Preferred
• Do not use
• Approved
|
|
 |
Security
|
statusFamily_Security
|
• Restricted
|
The OOTB glyphs can easily be included in an info page or table by using its corresponding Status family id. The naming convention for these glyphs is: statusFamily_<family name>
Adding a Status Glyph to an Information Page
The following snippet shows how you can add a status glyph to the information page for a particular business object type. In the builder for that business object type, override the buildInfoConfig() method to add the glyph component to the info page component. For example:
public static InfoConfig buildInfoConfig(InfoComponentConfigFactory factory)
throws WTException {
InfoConfig infoConfig = factory.newInfoConfig();
...
PropertyConfig statusFamilySecurity = factory.newPropertyConfig ("statusFamily_Security"); statusFamilySecurity.setStatusGlyph(true);
infoConfig.addComponent(statusFamilySecurity);
...
return infoConfig;
}
throws WTException {
InfoConfig infoConfig = factory.newInfoConfig();
...
PropertyConfig statusFamilySecurity = factory.newPropertyConfig ("statusFamily_Security"); statusFamilySecurity.setStatusGlyph(true);
infoConfig.addComponent(statusFamilySecurity);
...
return infoConfig;
}
Adding a Status Glyph to a Table
The following snippet shows how you can add a status glyph to a table for a particular business object type. In the builder for that table, override the buildComponentConfig () method to add the glyph component to the table component. For example:
public ComponentConfig buildComponentConfig(ComponentParams params) throws WTException {
ComponentConfigFactory factory = getComponentConfigFactory();
TableConfig tableConfig = factory.newTableConfig();
...
ColumnConfig col1 = factory.newColumnConfig("statusFamily_Share", false);
tableConfig.addComponent(col1);
...
return tableConfig;
}
ComponentConfigFactory factory = getComponentConfigFactory();
TableConfig tableConfig = factory.newTableConfig();
...
ColumnConfig col1 = factory.newColumnConfig("statusFamily_Share", false);
tableConfig.addComponent(col1);
...
return tableConfig;
}
See Constructing and Rendering a Table Using the JSP Framework for more information on tables.
