Work with Procedures in Vuforia Editor > Working with Assets > Images

Images
Supported File Types
.jpg
.jpeg
.png
.gif
*
.gif files may not be displayed correctly or be animated on some devices.
Edit an Image
You can edit and annotate images from the following locations in Vuforia Editor:
The assets library

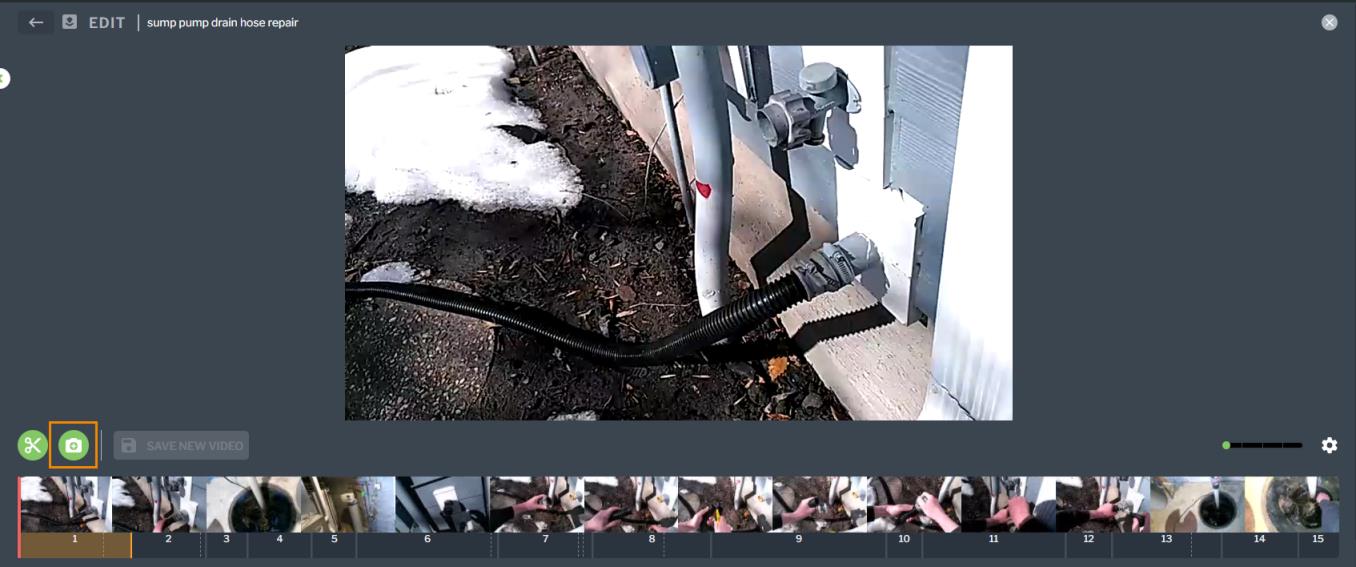

The CREATE IMAGE window. To open the CREATE IMAGE window, open a Capture, then click EDIT in the VIEW pane. Then click the Create new image icon.
From a step in the procedure that contains an image

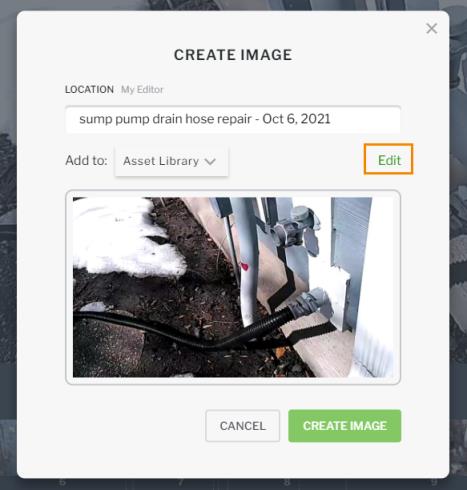

1. Once you’re on the CREATE IMAGE window, click Edit.
2. The Image Editor opens. Make the appropriate edits to your new image using the tools listed below.
Icon
Action
Description
undo
Undo
Undo an action
redo
Redo
Redo an action.
reset
Reset
Reset the image to it’s original state.
delete
Delete
Select an element you added to the image, and click delete to delete it.
delete all
Delete all
Deletes all changes made.
crop
Crop
Remove unwanted areas from the edges of the image. Select the crop icon, and then select the size of the area to crop.
flip
Flip
Flip the image horizontally or vertically. Select the flip icon, and then select the axis on which you want to flip the image.
rotate
Rotate
Rotate the image. Select the rotate icon, and then select which way you want to rotate the image. You can also select the degree to which you want to rotate the image using the slider.
draw
Draw
Draw on the image. Select the draw icon and then select the type of lines you want to draw, color, and select the weight of the lines using the Range slider.
shape
Shape
Add a shape to the image. Select the shape icon, and then select the shape you want to add, and click the area on your image you want to place the shape. You can also select a fill color for the shape and the outline (stroke) color along with the weight of the stroke.
icon
Icon
Add an icon to the image. Select the icon, and then select the icon you want to add, and click the area on your image you want to place the icon. You can also select what color you want the icon to be.
text
Text
Add text to the image. Select the text icon, and then double-click on the area of the image where you want to place the text. You can modify the style, alignment, color, and size of the text..
3. Once you’re done editing your image, click Done.
4. Then, click CREATE IMAGE to save your new image.
