Enhanced Quilt Label and Visibility Control for Quilts in Model Tree
Creo Parametric 12.4.0.0
User Interface Location: Model Tree and other navigation trees that show quilts.
Videos
Description
The display of quilt label and visibility control of quilts in the Model Tree have been enhanced to improve usability.
The new enhancements indicate a link between the quilt and the feature that created the quilt, including:
• Enhanced Quilt Label
The quilt label displays the name of the owner feature (the feature that created the quilt) in parentheses, providing a clear visual link between the quilt and its originating feature.
• Visibility Control
◦ For features that create a single quilt, the Show, Hide, Show Only, and Show All Except affect both the quilt and the related feature.
◦ Hiding or showing a quilt also hides or shows the feature.
◦ Hiding or showing the feature also hides or shows the quilt.

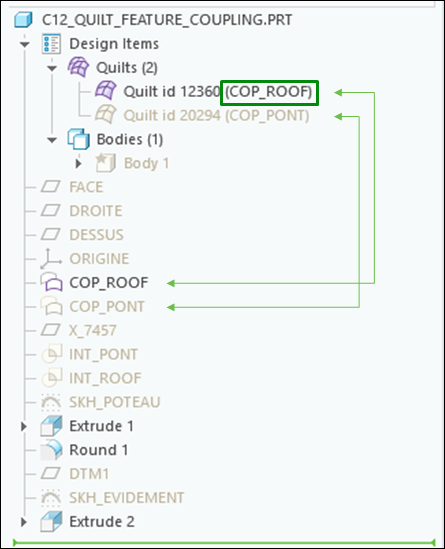

The quilt label update, displaying the feature name, is shown in the following image.
Previously, to show a quilt, it was required to check if the quilt was hidden due to the feature’s visibility state, the quilt’s visibility state, or both.
Benefits
Improved user experience for controlling a quilt visibility.
Additional Information
Tips: | None. |
Limitations: | Exceptions to this behavior are features like Swept Blend, Helical Sweep, and Enclosure Volume as they may create additional geometric objects. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
