Tooltips Enhanced
Creo Parametric 13.4.0.0
User Interface Location: Click Model > Sketch.
Videos
See the video on the Learning Connector.
Description
In Creo13, the enhanced tooltips have been expanded to also include Sketcher. These enhanced tooltips provide clear imagery of the tool's functionality. The text of these tooltips has also been updated to offer meaningful insight into the tool.

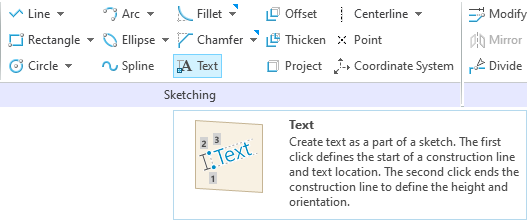

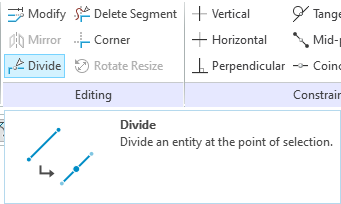

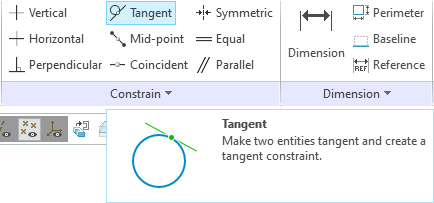

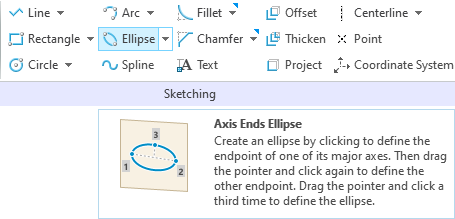

Enhanced Divide tooltip with image Enhanced Ellipse tooltip with image Enhanced Text tooltip with image Enhanced Tangent tooltip with image
This is an ongoing project, with enhanced tooltips being added to additional tools.
Benefits
This enhancement improves understanding of each tool. The visual images alongside the written description of the tools and options better communicates the functionality offered in Creo.
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
