Style Surfaces: Stretch Connection Tangency
Creo Parametric 12.4.0.0
User Interface Location: Click Style > Surface > Constraints.
Videos
See the video on the Learning Connector.
Description

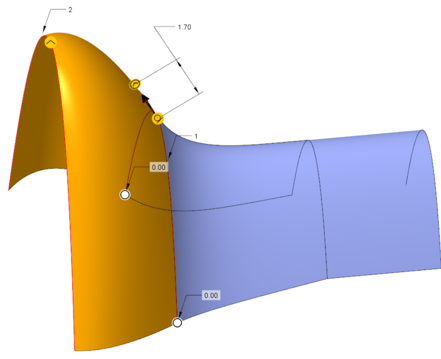

An enhancement in Creo Style provides the capability to control the weight of the transitions between loft surfaces. You can drag a stretch handle, or enter a stretch value that defines the size of the transition between loft surfaces.
Previously this functionality was available in Boundary Blend. It is now also available in Style.
Benefits
More control over your Style surfaces and how they transition into one another
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
