Style: Enhanced Chains Collector in the Offset Curve Feature
Creo Parametric 13.4.0.0
User Interface Location: Click > >
Offset Curve > .
Offset Curve > .Videos
Description

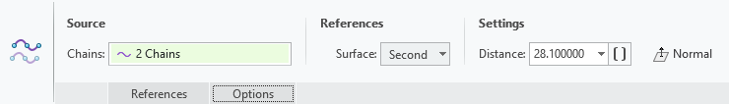

In Style, the Offset Curve feature has been enhanced to support the standard Creo Chains collector. With the enhanced Chains collector, you will now be able to offset edges, curves, and composite curves in the Offset Curve feature.
When offsetting a curve on surface or edge, Creo will now allow the offset curve to extend to adjacent surfaces of the given body. Optionally, you will be able to extend the start/end points to the surface boundary.
When offsetting a composite curve, Creo will automatically update the offset curve feature when the composite curve is modified.
Benefits
• Enhanced curve selection for the Offset Curve feature in Style has been added.
• The improved workflow makes modeling in Style more efficient.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
