Style: Non-Tangent (Non-G1) Chains for Surface Creation
Creo Parametric 12.4.0.0
User Interface Location: Click Style > Surface.
Videos
See the video on the Learning Connector.
Description

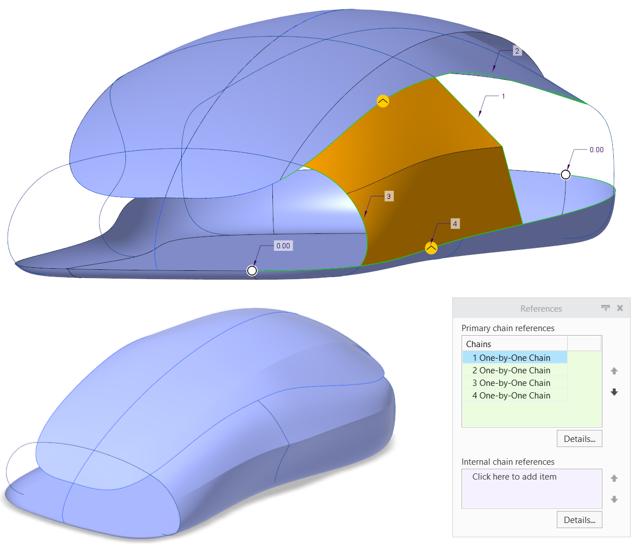

In Creo Parametric 12, it is possible to select non-tangent (non-G1) chains as references when creating a surface in Style. This capability has been available in Boundary Blend, and now it is also available in Style.
Benefits
Can now select chains made of non-tangent components as references for creating a surface, removing the limitation from the Surface tool
Additional Information
Tips:
None.
Limitations:
• G2/G3/Draft connections cannot be defined for non-G1 boundaries.
• For sweep surfaces with a non-G1 trajectory curve:
◦ G1 connections cannot be defined.
◦ Radial sweep will not be available.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
