Style: Knots Analysis Support for Additional Surface Types
Creo Parametric 12.4.0.0
User Interface Location: Click either of the following:
• Analysis > Inspect Geometry > Knots
• Style > Knots
Description
In Creo Parametric 12, the Knots analysis has been extended to support additional surface types, including:
• Revolve surfaces
• Variable rounds
• Spline extrusion
• Draft surfaces

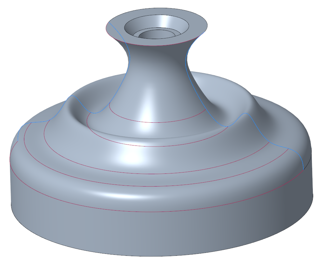

The Knots analysis will now display isoparametric lines drawn on the additional surfaces to determine where and how control points influence the shape of a curve or surface.
In prior releases, the Knots analysis only supported spline and B-spline curves/quilts.
Benefits
• Analyze surface geometry to determine how it was created
• Assess the quality of the of the surface geometry
• Improved usability and productivity
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
