Style: Isoline Edges Improved Handling
Creo Parametric 12.4.0.0
User Interface Location: N/A
Videos
Description
In Creo Parametric 12, when a surface edge is used to define a boundary to a neighboring surface, the knots and degree will be inherited from the leader surface.
Previously, when selecting an edge as a boundary reference, that reference would be an approximated curve.

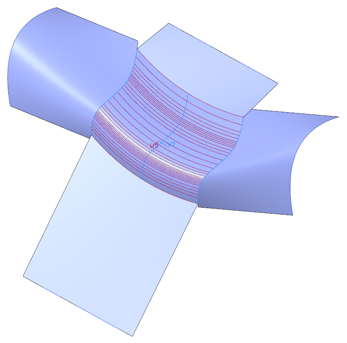

Creo 11:

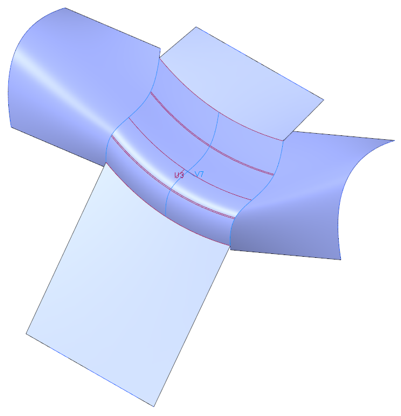

Creo 12:
Benefits
Improved quality of the child surface and flow of connection when the surface boundaries are defined by edges
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
