Style: Improve Surface Acceleration (G3) for Curves
Creo Parametric 13.4.0.0
User Interface Location: Click Style > Curve Edit > Tangent definition.
Description
Style has been enhanced to improve the quality and stability of Style curves whose tangents are defined with G3 surface acceleration constraint.

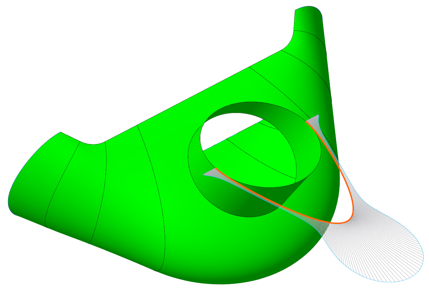

Style curve analysis
The curve calculation has been optimized for curves with G3 surface acceleration constraint to address stability issues that could result in curve failure. The enhancement supports all curve types that could include G3 surface acceleration, specifically planar curves to maintain planarity.

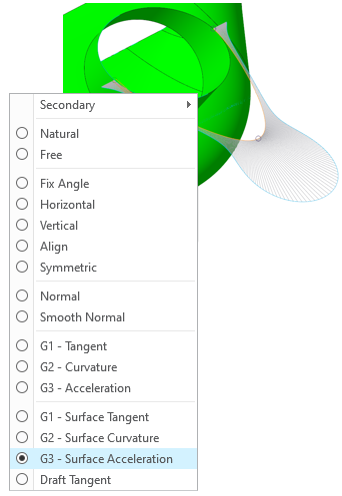

Style curve analysis and right mouse button menu
Benefits
This enhancement improves curve calculation, resulting in higher quality and stable curves that include G3 surface acceleration constraints.
Additional Information
Tips:
None.
Limitations:
No known limitations.
Does this replace existing functionality?
No.
Configuration option associated with this functionality:
None.
