Creo Simulation Live—Automatic Contacts
Creo Parametric 12.4.0.0
User Interface Location: Live Simulation tab.
Videos
Description

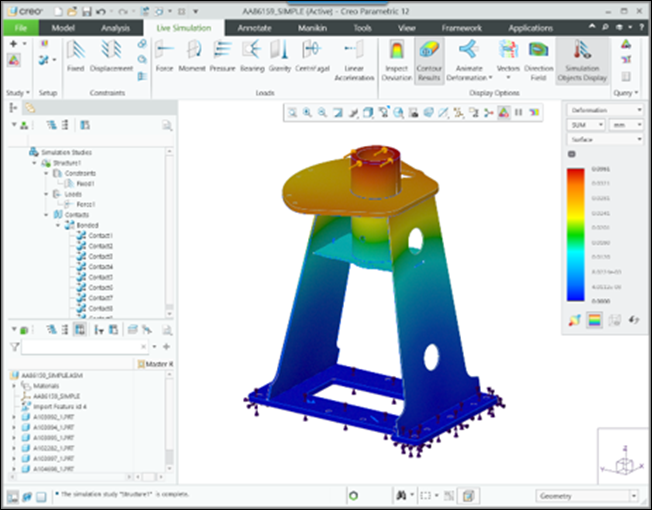

Previously, for both assemblies and multi-body parts the solver bonded all bodies and parts. Creo Simulation Live now automatically detects and creates bonded contacts for the part or assembly when you create a new design study. Contacts are automatically created for structural, modal, and thermal studies. Contacts can be created for fluid studies, but they are typically not required. Contacts are also automatically created for multi-physics studies. The contacts are displayed in the Model Tree and can be edited or removed.
Benefits
This enhancement provides the following benefits:
• Improved accuracy using contacts
• Automatic contact creation
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | simlive_contact_detect_on_study—When a new simulation live study is created automatic contacts are detected and created only if this option is set to the default value of yes. |
