Improving Clocking Angle
Creo Parametric 13.4.0.0
User Interface Location: Click
Piping >
Piping Info.
Piping > Piping Info.Description

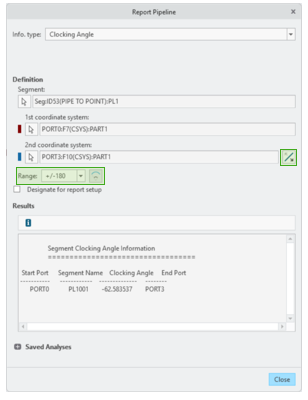

Clocking angle analysis for connected piping fittings is enhanced to improve the accuracy and clarity of fitting orientation evaluation. The analysis provides a graphical preview for validating orientation and supports selectable clocking angle ranges, enabling clearer interpretation of relative fitting alignment.
This enhancement provides the following capabilities:
• Improved clocking angle calculation between connected piping fittings.
• Graphical preview for validating fitting orientation.
• Selectable clocking angle range of ±180° or 0–360°.
• Ability to flip fitting orientation to evaluate alternate alignment.
Benefits
• Clocking angle information is presented in a manner that aligns with industry expectations.
• Interpretation of fitting orientation in piping assemblies is clearer and more consistent.
• Orientation validation is simplified during design and review activities.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
