Improved Relation Errors in Notification Center
Creo Parametric 13.4.0.0
User Interface Location: Relations dialog box, click > .
Videos
Description

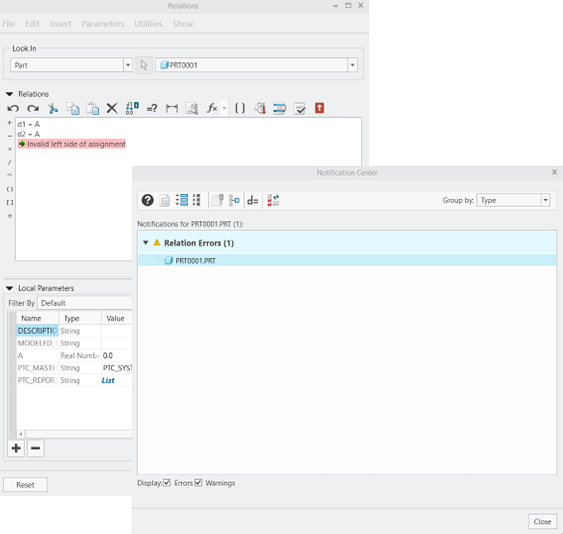

Relation errors and warning handling have been improved to enhance visibility, traceability, and access. Relation errors and warnings no longer need to be traced back to the associated feature, part, or related item. Direct messages now appear in the Notifications Center, providing clearer visibility into relation errors and warnings.
The capabilities of the enhancement include:
• Relation errors and warnings are now presented in the Notifications Center.
• Ability to navigate directly to the corresponding problematic error or warning from the Notifications Center.
• Errors and warnings are color coded in the Relations for distinction and better identification.
• Relations can be accessed from the right-click contextual menu in the Model Tree. Parameters support context-switching.
• Redundant messages in the message line have been removed.
Benefits
• Improved visibility and awareness of relation status.
• Enhanced traceability to problematic relations.
.
Additional Information
Tips: | None. |
Limitations: | None. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | • nmgr_relation_errors • nmgr_relation_warnings |
