Edit Parameters in Reported Mass Properties
Creo Parametric 13.4.0.0
User Interface Location: Parameters dialog box and Mass Properties Calculation user interface.
Videos
Description

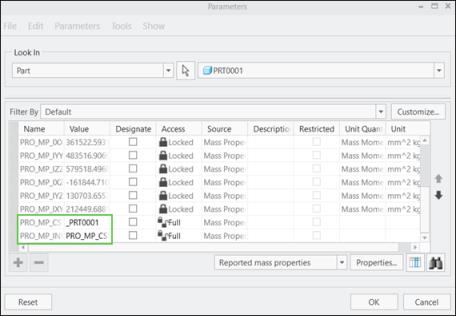

Editing is now supported for two parameters in the Reported Mass Properties dialog box: PRO_MP_CSYS and PRO_MP_INERTIA_ORIGIN. This enhancement allows the Moment of Inertia calculation to be modified programmatically or at the time of the initial calculation.
Benefits
• Improved usability.
• Improved user experience when working with relations and mass properties calculations.
Additional Information
Tips: | None. |
Limitations: | None. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
