Retract Enhancements for NC Sequences
Creo Parametric 13.4.0.0
User Interface Location: N/A
Videos
Description

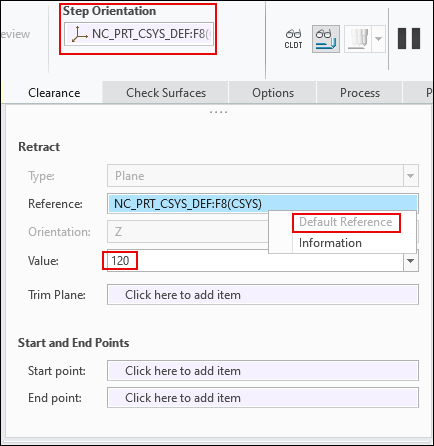

The following new configuration options related to the retract value and retract reference are available for all Creo NC toolpaths:
• mfg_retain_step_retract_value—Retains the retract value defined at the step level when you change the retract reference. The retract value is not reset to zero. The default value is no.
• mfg_update_retract_per_stepcsys—Automatically updates the step retract reference when you change the step orientation coordinate system. The step retract reference is updated only if the step orientation and retract use the same reference coordinate system. The default value is no.
Benefits
These enhancements provide the following benefits:
• New persistent behavior for retract value and reference
• User-friendly experience
• New controls consistent with Creo NC workflows
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | • mfg_retain_step_retract_value yes, no* • mfg_update_retract_per_stepcsys yes, no* |
