New Diagnostics for Overlapping Geometry in Flat States in ModelCheck
Creo Parametric 12.4.0.0
User Interface Location: N/A
Videos
Description
This enhancement, introduces new checks to check for overlapping Sheetmetal bodies and design violations.

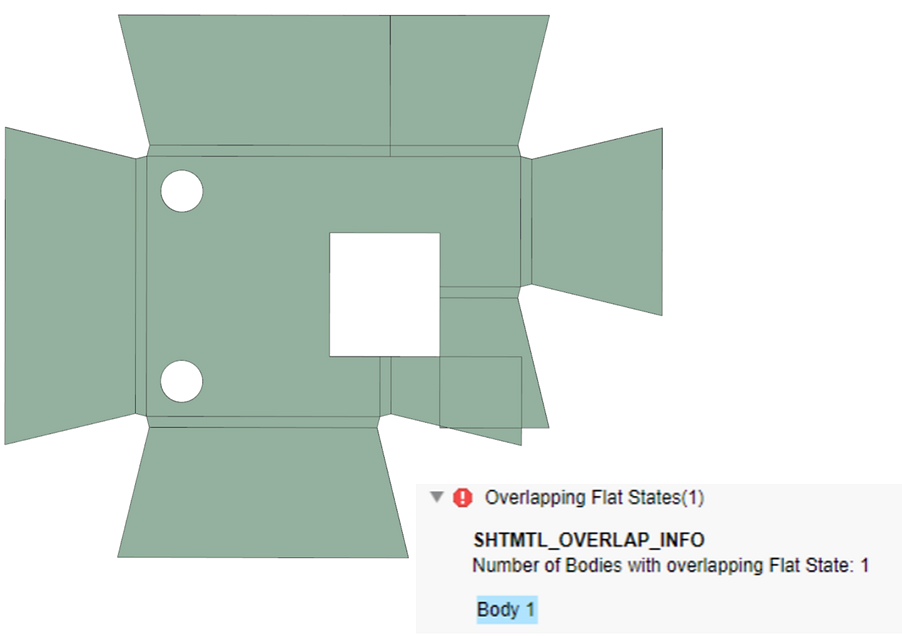

• SHTMTL_OVERLAP_INFO check—Checks if a Sheetmetal body has overlapping geometry in flat state. It also highlights the affected body in the graphics window.

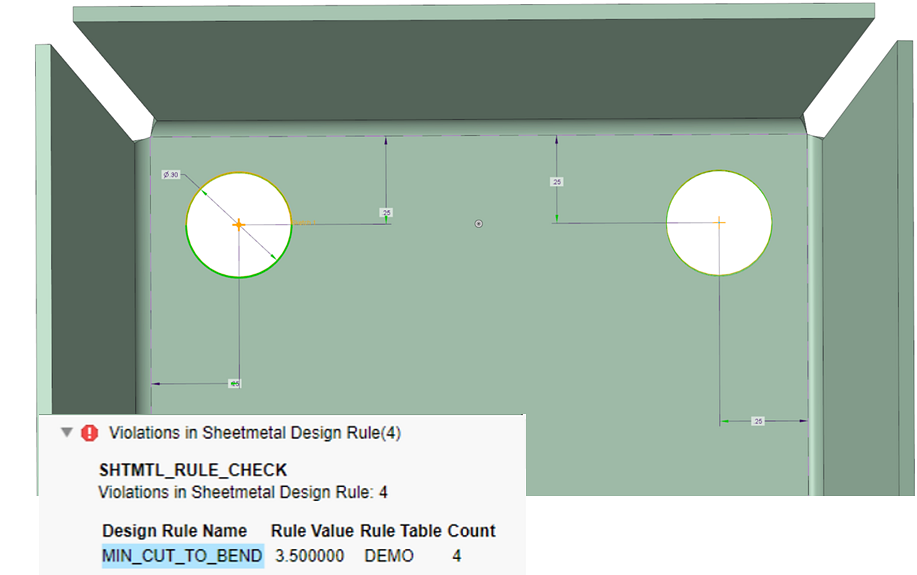

• SHTMTL_RULE_CHECK check—Reports all Sheetmetal design rule violations. The check has an option to highlight the violation in the graphics window with correct dimension.
Benefits
These checks extend the functionality of existing Sheetmetal checks to support multibody Sheetmetal features.
Additional Information
Tips: | None. |
Limitations: | These checks are applicable in Part mode only. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None |
