Intent Chain Compatibility with Semantic Definition in Annotation Features
Creo Parametric 12.4.0.0
User Interface Location: Chain collector in the Annotation Feature dialog box
Videos
Description

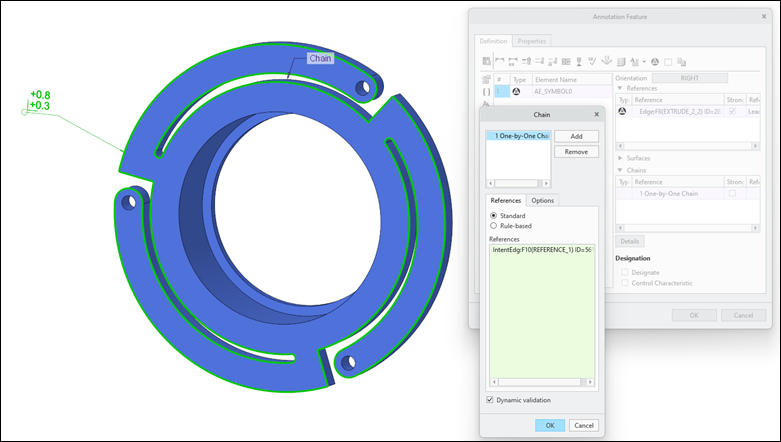

Intent chains can now be gathered as annotation references when using annotation features. This functionality is available for both the pick from list option in the graphics area and for datum reference features that are defined as collections of intent chains.
Benefits
Quick and efficient way for collecting chain references for annotations.
Additional Information
Tips: | None. |
Limitations: | Currently, chain references can only be collected by annotations owned by an annotation feature. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
