Displacement Constraint
Creo Parametric 13.4.0.0
User Interface Location: In the Generative Design application, click > > . The Peak Displacement dialog box opens.
Videos
Description
You can now use displacement constraints as part of the design criteria for structural studies.

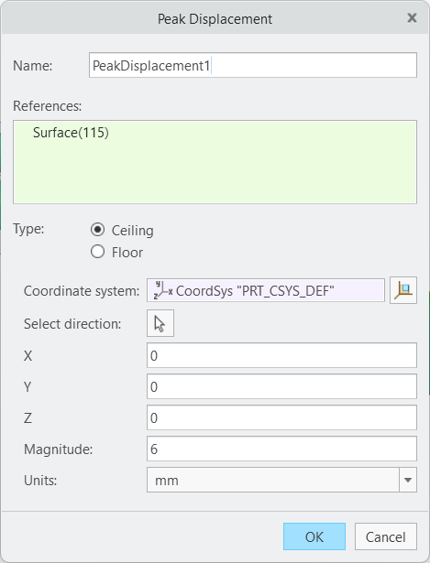

Using the Peak Displacement option, you can specify the maximum or minimum displacement in a particular direction. You can define multiple peak displacement constraints within a study, one for each reference. You can reference a local coordinate system with this option.
 | The displacement constraint option is available only in structural studies. |
Benefits

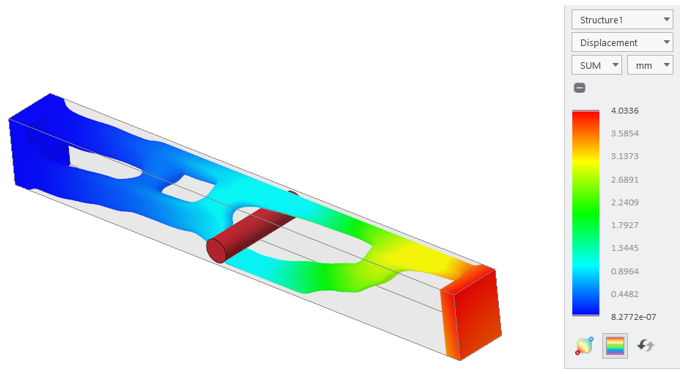

This enhancement drives targeted optimization by specifying an exact displacement value. It provides realistic manufacturing outcomes to replicate how geometry connects within an assembly.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
