Expanded Analysis Support for a Hybrid Body
Creo Parametric 12.4.0.0
User Interface Location:
1. Click the Analysis tab, and then select a tool in the Inspect Geometry group.
2. Select the generative hybrid body.
Videos
Description

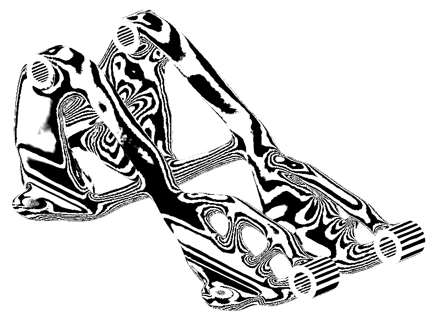

You can now perform the following types of analyses on a Generative_Hybrid body:
• Shaded Curvature Analysis
• Reflection Analysis
• Shadow Analysis
• Slope Analysis
This enhancement includes all generative and lattice bodies. All the existing functions within these types of analyses are also supported.
Previously, it was not possible to capture these types of analyses for a Generative_Hybrid body.
Benefits
This enhancement provides improved analysis features for generative bodies. It leverages the analysis quantities for making additional decisions downstream.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
