GD&T Advisor Enhancement: Disjointed Surface Regions are Reflected in Callouts of Functional Features
Creo Parametric 12.4.0.0
User Interface Location: N/A
Videos
Description

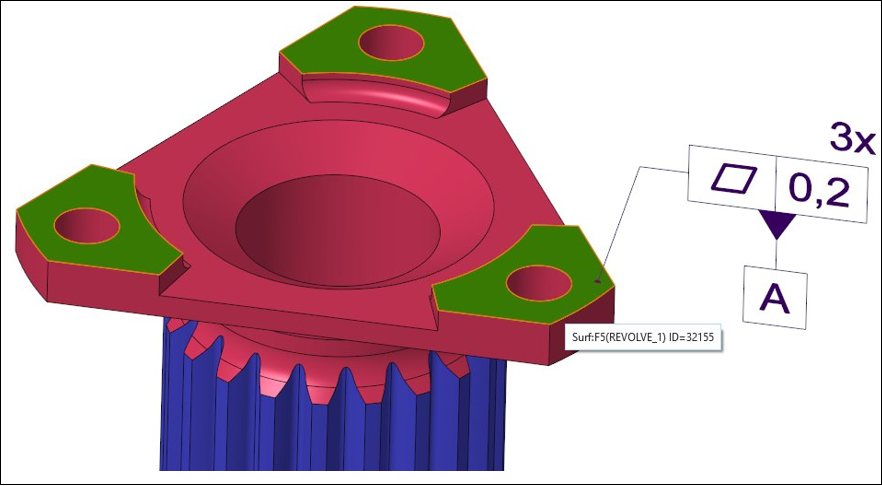

GD&T Advisor automatically detects cases where a single surface represents multiple disjointed surface region areas. It reports the surface region count in the functional features created for this surface.
According to detailing standards, GD&T annotations specify the true count of surfaces corresponding to a specific feature. This also applies to disjointed surface regions represented as a single surface in Creo.
Benefits
With this enhancement, users no longer need to manually indicate the count of repeated features (disjointed surface regions) when they belong to the same surface.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
