STEP AP242 Edition 3 Export Support
Creo Parametric 12.4.0.0

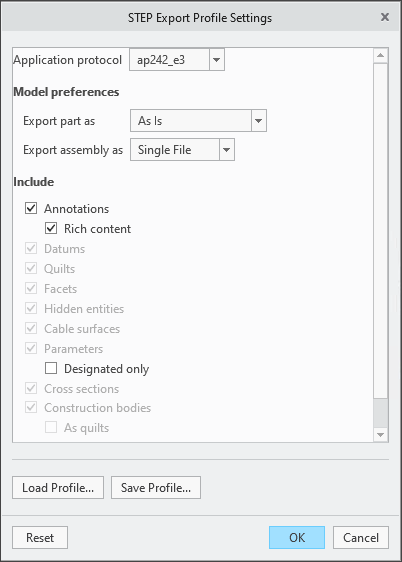

User Interface Location: Click > > >
Description
Creo Parametric now supports export to STEP AP242 Edition 3.
• This new export file format adheres to ISO standards for STEP AP242 Edition 3.
• Edition 3 expands on the capabilities of prior editions with an emphasis on Product Manufacturing Information (PMI).
Benefits
• Improves collaboration with downstream applications and third-party systems.
• Provides more robust and comprehensive support for Model Based Definition.
• Improves support for note annotations to capture relevant semantic product manufacturing information (PMI).
• Improves annotation definition by supporting additional references for note annotations and including them in the STEP AP242 file.
Additional Information
Tips: | None. |
Limitations: | See article STEP ap242_e3 limitations in Creo |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
