Opening an Assembly in Creo from a Workspace with a Partial Set of Dependents
Creo Parametric 12.4.0.0
User Interface Location: Click
to access the Embedded browser and navigate to the Windchill workspace.
to access the Embedded browser and navigate to the Windchill workspace.Videos
Description
Previously, an external simplified representation would have to be manually defined in Creo to filter down to a subset of components, and any components that were not fetched were flagged as missing.
With the new

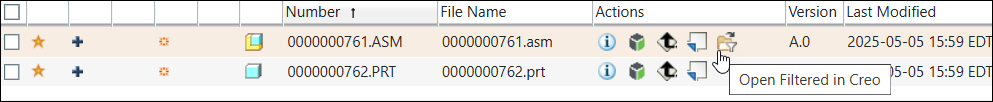

Open Filtered in Creo action, you can now open a partial set of components, and any components that are not in the workspace are excluded from the assembly. The Open Filtered in Creo action is available in the Windchill Workspace page through the embedded browser.
Open Filtered in Creo action, you can now open a partial set of components, and any components that are not in the workspace are excluded from the assembly. The Open Filtered in Creo action is available in the Windchill Workspace page through the embedded browser.
Benefits
With this enhancement, you can easily open a partial set of components in Creo without opening the entire assembly. This ensures a faster retrieval of the desired set of objects into Creo.
Additional Information
Tips: | None. |
Limitations: | • Applies only to design assemblies. • Excludes only Creo Unite dependents; missing ones are added to Workspace. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
