Electric Field Simulation in Creo Flow Analysis
Creo Parametric 12.4.0.0
User Interface Location: Click > .
Videos
Description
Creo Flow Analysis can now simulate the flow of electric current through electrical components. This new feature enhances the simulation capabilities of Creo and is available with the CFA Premium package.
This functionality is based on the Maxwell solver, ensuring accurate and reliable results. The output variables of the electric current simulation include:
• Electric potential and voltages
• Current
• Joule heating
• Charges
• Electrodynamic forces and torques
|

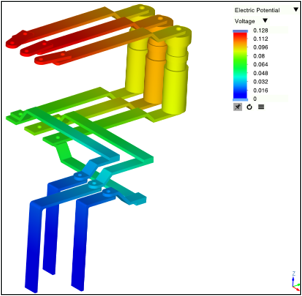

Electric Potential
|

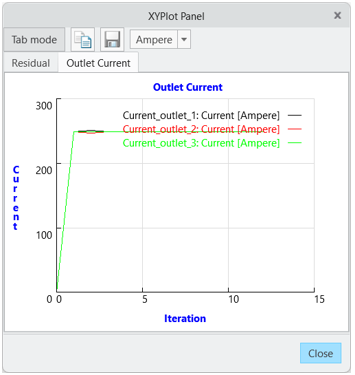

Current
|

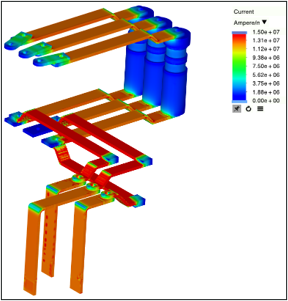

Joule Heating
|
|---|---|---|
 |
 |
 |
Benefits
This enhancement provides the following benefits:
• Enables you to perform electric simulations in Creo without using external solutions.
• Uses the same meshing and solving workflow as other CFA components.
• Integrates electric simulations with fluid and thermal solvers in Creo Flow Analysis.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
