Modernizing Sub-Harness Interface
Creo Parametric 13.4.0.0
User Interface Location: Click
Sub-Harness from the Harness overflow menu.
Sub-Harness from the Harness overflow menu.Description

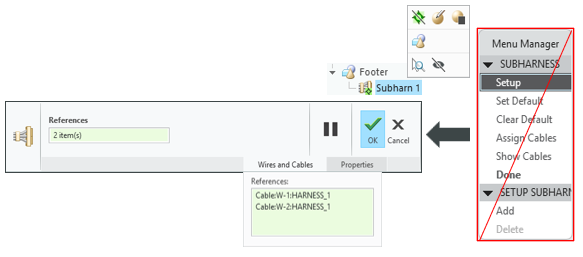

The Sub-Harness tool is updated to use a standardized and modern user interface. This enhancement includes the following changes:
• Standardizing activation and redefinition mechanisms.
• Highlighting selected sub-harness entities in the graphics area.
• Displaying the Cabling Tree during sub-harness definition.<
Benefits
A more consistent interface improves usability and reduces effort when defining and modifying sub-harnesses.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
