Routing Bundles without Routing Data
Creo Parametric 13.4.0.0
User Interface Location: Click
Route Cables >
.
Route Cables > .Videos
Description
Bundles can now be created even when full routing information is not available. This enhancement removes previous restrictions that required all child entities to be fully routed.
You can now do the following:

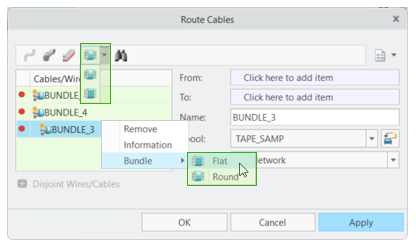

• Create empty Flat or Round bundles directly from the Route Cables dialog box.
• Allow bundles with unrouted or partially routed entities.
Benefits
Supports space-claim and early design workflows where full routing detail is not required.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
