Additive Manufacturing: STL and 3MF Enhancements on the Tray Assembly
Creo Parametric 12.4.0.0
User Interface Location: Click >
Print >
Prepare for 3D Printing > .
Print > Prepare for 3D Printing > .Description
The Tray Assembly has been enhanced to better support STL and 3MF export of models that contain multiple bodies and facet features.

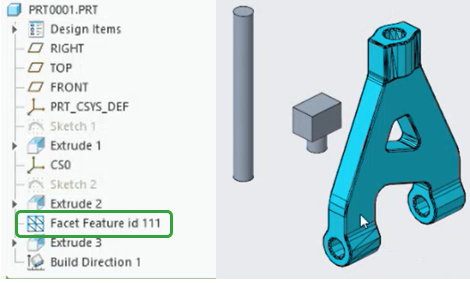

This enhancement corrects unwanted behavior, depicted in the example of supports for a Facet feature:
Previously, in cases when multiple parts were placed on the Tray Assembly, and one or more were faceted models, then when creating support structures, the system created duplicate supports:
Now, with the corrected functionality, only one set of support structures is created:
Benefits
• Corrected export to 3MF and STL
• Support of facet features on a multibody part for 3D Printing
• Consistent with Creo workflows
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
