Undercut Machining Sequence Parameters
The SHAFT_CLEARANCE parameter is specific to the Undercut Machining NC sequences. The parameters supported for HSM Finish are also applicable to the Undercut Machining NC sequences. For more information on HSM Finish parameters, see High Speed Milling Parameters. For description of the common manufacturing parameters, available for all NC sequence types, see Common NC Sequence Parameters.
HSM Undercut Machining Parameter for Cut Depth and Allowances
Shaft clearance distance (ID: SHAFT_CLEARANCE)

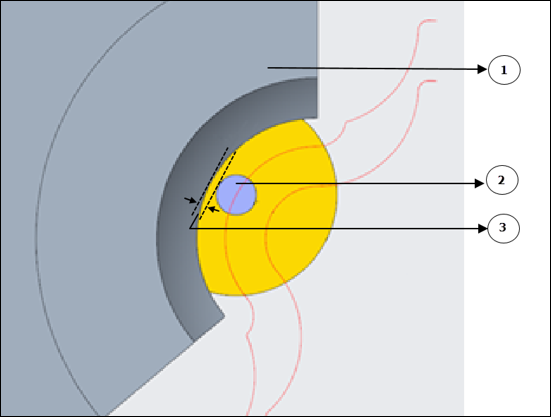

Defines the minimum distance between the shaft and the reference part during machining.
1. Reference part
2. Tool shaft
3. Distance between the tool shaft and reference part
