Creating Holes
1. On the
Model tab, click
Hole from the
Engineering group. The
Hole tab opens.
2. Press CTRL and select the datum axis PIN_AXIS and the datum plane RIGHT in the Model Tree.
3. On the
Hole tab, click the arrow next to
, and click
.

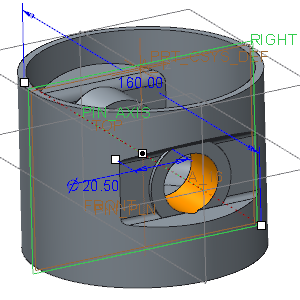

4. Edit the diameter value to 20.5 and edit the depth value to 160.
5. Click
.
