Support Driven Dimension on a Plane Along the Cylinder Axis
Creo+
User Interface Location: N/A
Videos
Description

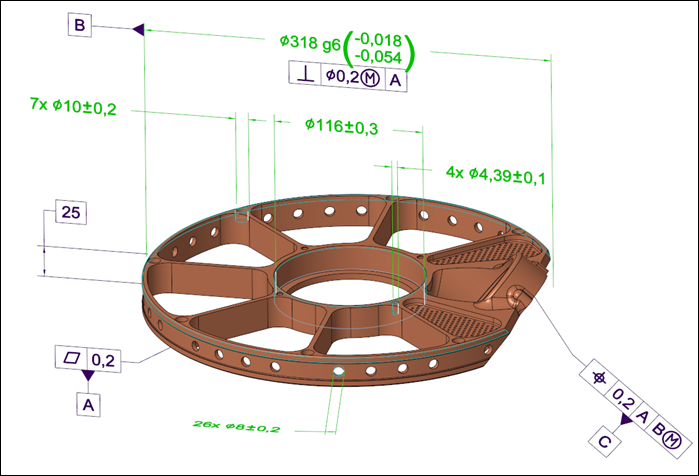

With this enhancement, a driven (created) diameter dimension can now be created or reoriented to any plane that goes along the cylinder axis. This eliminates the need to manually create this plane, instead, select a reference plane (for example, FRONT), and the dimension will be created on a parallel plane intersecting the cylinder axis.
Previously, it was not possible to create a diameter dimension on a plane that goes along the cylinder axis; such orientation was possible only for a driving or shown dimensions.
Benefits
• Enhanced flexibility when creating diameter dimensions.
• Improved compliance with the detailing standards.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
