Additional Washer and Nut for IFX
Creo+
User Interface Location: Click
• > > > >
• > > >
Videos
Description
Starting with Creo+, Creo Intelligent Fastener introduces two new options:
• Adding a second nut.
• Adding a third washer.
These options support applications that require a combination of using three washers and HER (High Electrical Resistance) nut, particularly electrical connections. Using two nuts is a common method of preventing a nut from loosening.
These options are disabled by default and must be enabled in the Creo Intelligent Fastener options.

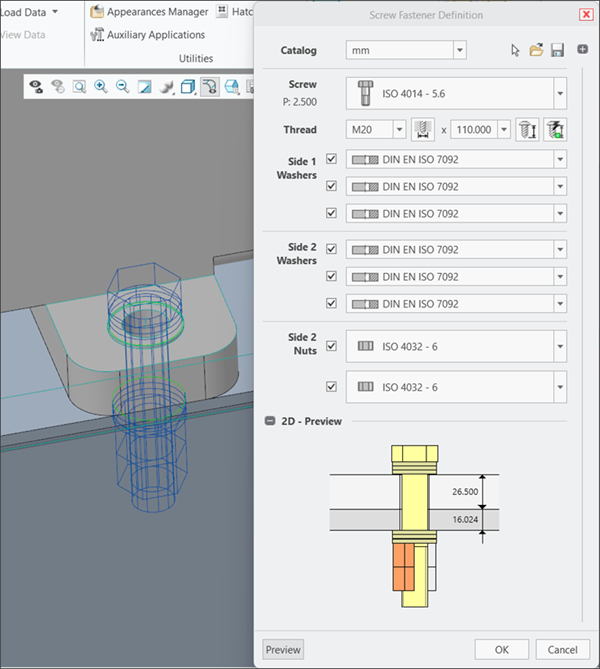

The Screw Fastener Definition Dialog Box
Benefits
• You can now add a third washer on each side in Creo Intelligent Fastener screws. This is beneficial in electrical connections.
• You can now add a second nut in Creo Intelligent Fastener screws. This is beneficial for locking methods.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | ENABLE_2ND_NUT ENABLE_3RD_NUT_WASHER ENABLE_3RD_SCREW_WAS |
