User Interface Location: N/A

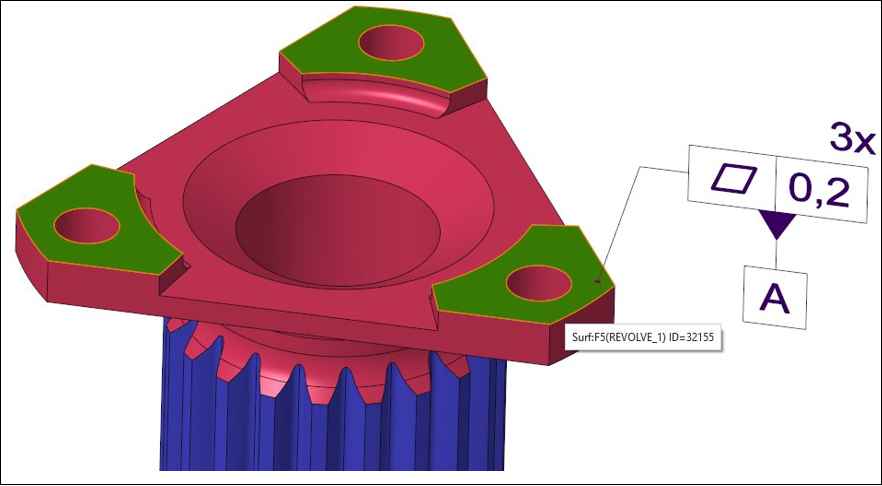

GD&T Advisor automatically detects cases where a single surface represents multiple disjointed surface region areas. It reports the surface region count in the functional features created for this surface.

According to detailing standards, GD&T annotations specify the true count of surfaces corresponding to a specific feature. This also applies to disjointed surface regions represented as a single surface in Creo.

With this enhancement, users no longer need to manually indicate the count of repeated features (disjointed surface regions) when they belong to the same surface.
