Surface Selection Improvements in Assembly
Creo+
User Interface Location: Surface Sets dialog box.
Description
Surface selection across multiple parts during surface sets definition had been improved. The selection filter now includes the Part option for multi-part selection. Part selections are automatically interpreted using the Surfaces of all bodies rule.
You can select surfaces from the Model Tree and graphics window. When the selection filter is explicitly changed to Part, box selection is available for selecting multiple parts.

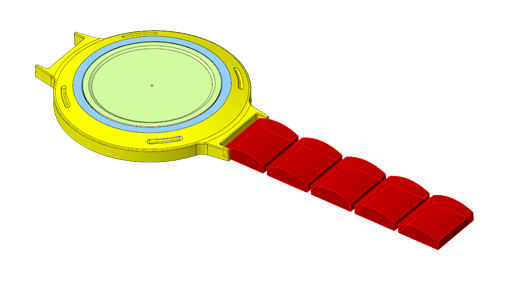

In the figure below multiple parts are selected.
Benefits
Easier multi-part surface selection in the Assembly environment.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
