Unbend Swept Flanges After Split
Creo+
User Interface Location: Click >
Unbend.
Unbend.Videos
If the video does not play, watch it on YouTube.
Description
After a split body operation, both sides of a flange along a curved trajectory now unbend properly. Previously a workaround was required.

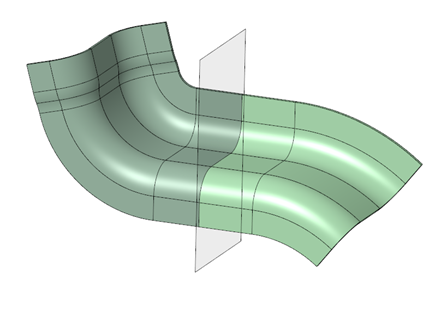

Swept flange after a split operation:

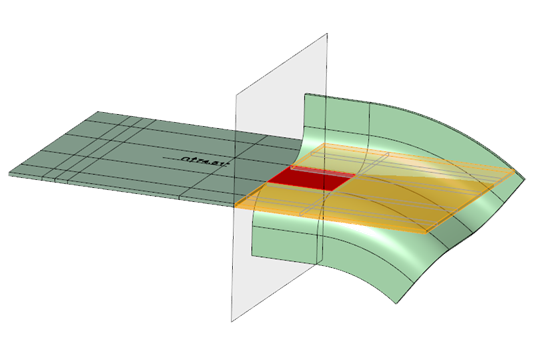

Unbending both sides of the swept flange:
Benefits
Improves productivity by avoiding the need to work around a limitation.
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | No. |
Configuration option associated with this functionality: | None. |
