Modernized CL Player for Synchronize Command
Creo+
User Interface Location:
1. Click >
Synchronize. The Synchronize dialog box opens.
Synchronize. The Synchronize dialog box opens.
2. Click
.
.Description

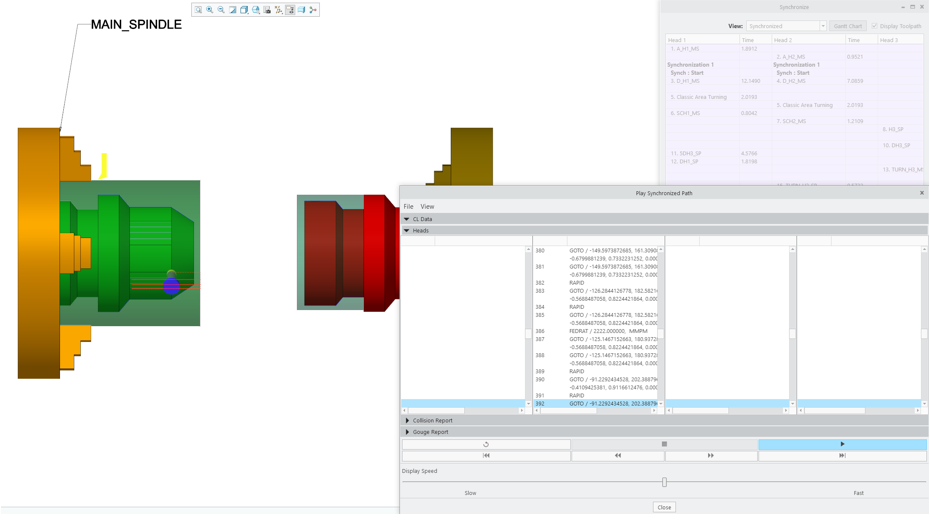

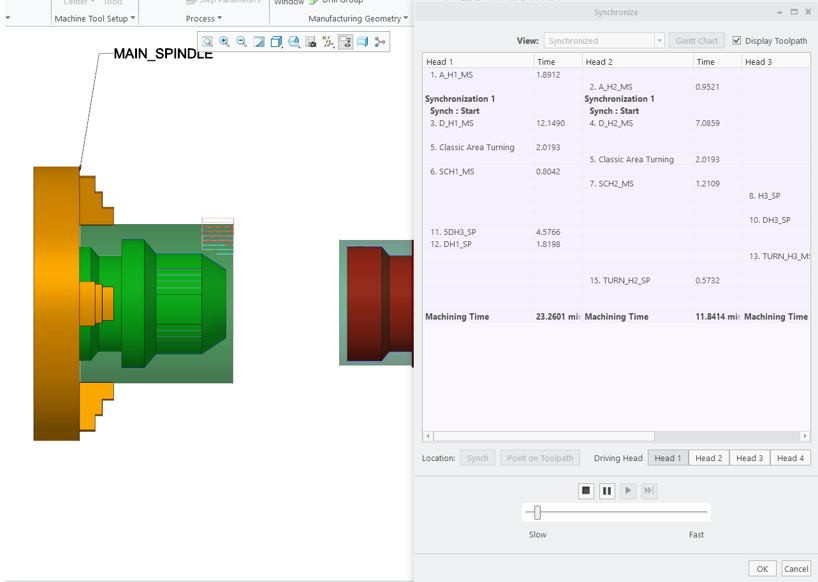

The modernized CL player is available for the Synchronize command. The Synchronize dialog box provides the new CL player when you click . This enhancement enables you to visualize the synchronized CL data when the tools are displayed in the graphics window.
Synchronize command. The Synchronize dialog box provides the new CL player when you click . This enhancement enables you to visualize the synchronized CL data when the tools are displayed in the graphics window.Creo 9  | Creo 10  |
Benefits
This easy-to-use functionality provides the following benefits:
• Reduces programming time
• Provides consistency in the workflow
• Enables a better visualization of synchronized toolpaths
Additional Information
Tips: | None. |
Limitations: | No known limitations. |
Does this replace existing functionality? | Yes. |
Configuration option associated with this functionality: | mfg_new_cl_player_for_sync yes*, no |
